A387GR11 Plates For Boilers And Pressure Vessels
A387GR11 steel Product Introduction
A387 gr11/12 CL1/2 steel covers chromium-molybdenum Alloy steel plates for welded boilers and pressure vessels designed for elevated temperature service. A387 steel considered under this specification are available in grades 2, 12, 11, 22, 22L, 21, 21L, 5, 9 and 91. The steel materials shall be killed and shall be thermally treated. A387 gr11/12 CL1/2 steel shall undergo heat analysis and product analysis and shall conform to the chemical requirements for carbon, manganese, phosphorus, sulfur, silicon, chromium, molybdenum, nickel, vanadium, columbium, boron, nitrogen, aluminum, titanium, and zirconium. A387 gr11/12 CL1/2 steel shall also undergo tension tests and shall conform to the required values of tensile strength, yield strength, and elongation.
A387GR11 Steel plate Product Details
Tensile Requirements for ASTM A387 Grade 11 Alloy Steel Plates Class 1 Plates
| Designation: | Requirement: | Grade 11 |
| A387 Grade 11 | Tensile strength, ksi [MPa] | 75 to 100 [515 to 690] |
| Yield strength, min, ksi [MPa]/(0.2% offset) | 43 [310] | |
| Elongation in 8 in. [200mm], min % | 18 | |
| Elongation in 2 in. [50mm], min, % | 22 | |
| Reduction of area, min % | ––– |
Chemical Requirements for ASTM A387 Grade 11 Alloy Steel Plates
| Element | Chemical Composition (%) | |
| A387 Grade 11 | ||
| Carbon: | Heat Analysis: | 0.05 - 0.17 |
| Product Analysis: | 0.04 - 0.17 | |
| Manganese: | Heat Analysis: | 0.40 - 0.65 |
| Product Analysis: | 0.35 - 0.73 | |
| Phosphorus: | Heat Analysis: | 0.035 |
| Product Analysis: | 0.035 | |
| Sulphur (max): | Heat Analysis: | 0.035 |
| Product Analysis: | 0.035 | |
| Silicon: | Heat Analysis: | 0.50 - 0.80 |
| Product Analysis: | 0.44 - 0.86 | |
| Chromium: | Heat Analysis: | 1.00 - 1.50 |
| Product Analysis: | 0.94 - 1.56 | |
| Molybdenum: | Heat Analysis: | 0.45 - 0.65 |
| Product Analysis: | 0.45 - 0.70 |

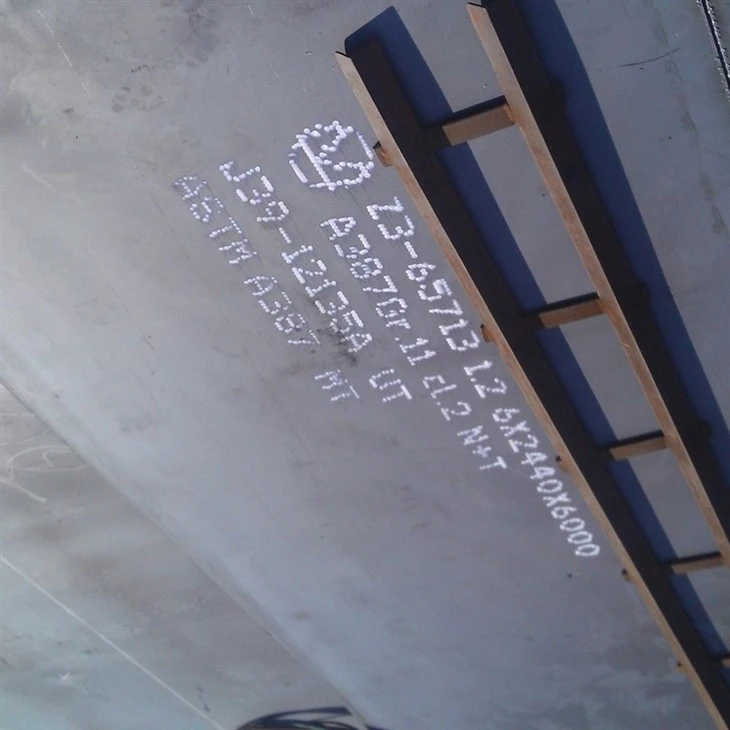

steel plate Product Image
GNEE Group Team Photo
Committed to strict quality control and dedicated customer service, we have an experienced production staff ready to meet your needs and ensure customer satisfaction. We guarantee you a pleasant stay in China.
GNEE Group Exhibition Pictures
GNEE Group customers visit
If you have more needs and questions about A387GR11 steel, we are happy to advise you!
