Q690E High Strength Low Alloy Plate
Q690E high strength plate Product Introduction
The Q690E low alloy steel sheet offered by GNEE is a kind of high strength low alloy structural steel with high strength, high toughness and good fatigue resistance.The Q690E high strength plate we offer can be customised in size, cut, welded, punched and other processing services according to your usage requirements.
In addition, the Q690E high strength sheet metal we offer is strictly produced in accordance with the standards and has passed the quality certification, and the Q690E high strength structural steel we produce can be provided with quality certificates and accept third-party testing.
| Product Name | HSLA Low Alloy High Strength Steel Plate |
| Process Method | Hot roll, cold roll, cold drawn, ect. |
| Other processing method | Cutting, bending, punching, or as customer's request |
| Size |
Thickness from 0.15mm-300mm, width from 50mm-3500mm, length from 1m-12m or according to customer's special request |
| Material grade | A709 A514 A573 S355 S690Q S690QL etc |
| Standard | JIS ASTM ASME GB EN |
| Certificate | API,ISO,SGS,BV,etc |
| Delivery terms | FOB / CIF / CFR / DAP or discuss with us for other terms |
Q690E high tensile steel plate Product Details
Q690E High-Strength Low Alloy (HSLA) Steel Plate Chemical Composition:
| STEEL GRADE | C% max | Si% max | Mn% max | P% max | S% max | Cu% max | Cr% max | Ni% max | Mo % max | B % max | V % max | Nb% max | Ti % max |
| Q690E | 0.2 | 0.80 | 1.8 | 0.025 | 0.015 | 0.5 | 1.5 | 2 | 0.70 | 0.005 | 0.12 | 0.06 | 0.05 |
Q690E (HSLA) Alloy Steel Plate Mechanical Properties:
| STEEL GRADE | Re yield strength Mpa min | Re yield strength Mpa min | elongation % | Energy and temperature | |||||||
| Min | 0 | -20 | -40 | -60 | |||||||
| Q690E | t≤50 | 50-100 | 100-150 | t≤50 | 50-100 | 100-150 | J | J | J | J | |
| 690 | 650 | 630 | 770-940 | 760-930 | -- | 14 | 47 | 47 | 34 | 34 | |

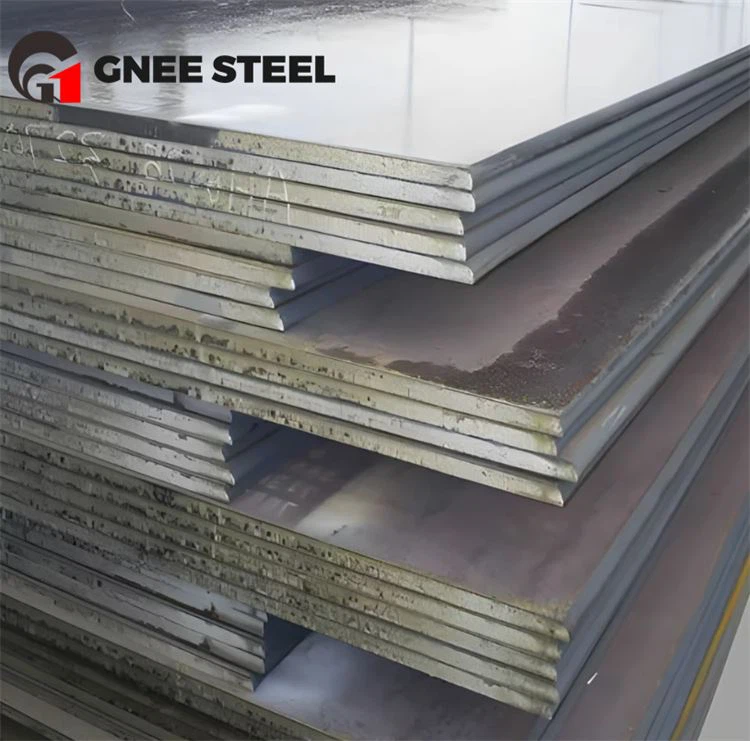

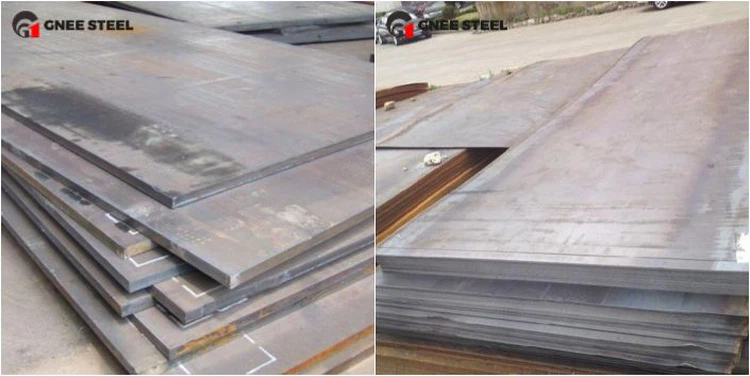

Q690E high strength steel sheet Product Image

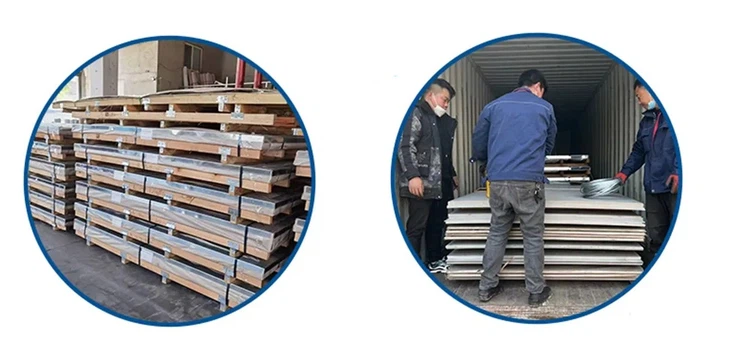

Q690E high strength steel Product packaging
GNEE Group customers visit
If you have more needs and questions about Q690E high strength low alloy plate, we are happy to advise you!
