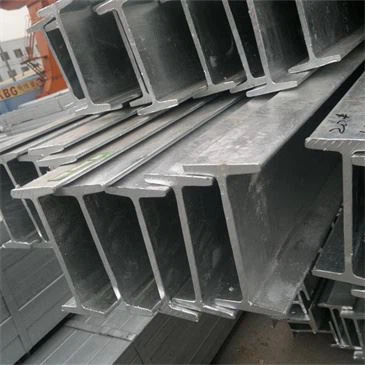

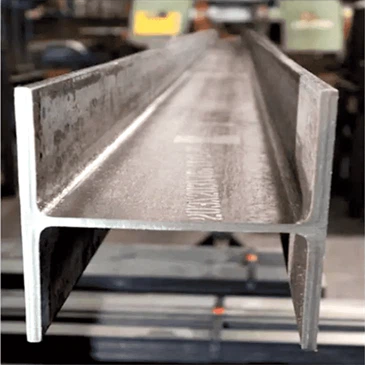

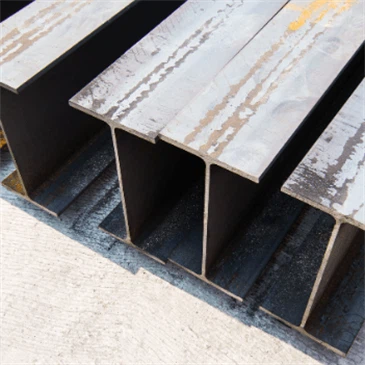

carbon-steel-h-beam-s70c-csp are widely used in the construction industry and are available in a variety of standard sizes. H-beams may be used both as beams and as columns. Future Metal’s hot rolled H-Beam comes with standard size range from 100×100 up to 350×350. Non standard H-Beam can be fabricated by welding steel plates together to form a welded beam that fits our customer’s size requirements. Future Metal also provides free cut-to-length service for customers that required length below our standard length of 12m. We have our own factory, a large number of carbon steel H steel in stock, to meet the needs of large orders, contact us to get the largest discount wholesale price !
Properties in imperial units of carbon-steel-h-beam-s70c-csp
| Designation | Dimensions | Static Parameters | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Moment of Inertia | Elastic Section Modulus | ||||||||
| Imperial (in x lb/ft) |
Depth - h - (in) |
Width - w - (in) |
Web Thickness - s - (in) |
Sectional Area (in2) |
Weight (lbf/ft) |
Ix (in4) |
Iy (in4) |
Sx (in3) |
Sy (in3) |
| S 24 x 121 | 24.5 | 8.050 | 0.800 | 35.6 | 121 | 3160 | 83.3 | 258 | 20.7 |
| S 24 x 106 | 24.5 | 7.780 | 0.620 | 31.2 | 106 | 2940 | 77.1 | 240 | 19.6 |
| S 24 x 100 | 24 | 7.425 | 0.745 | 29.3 | 100 | 2390 | 47.7 | 199 | 13.2 |
| S 24 x 90 | 24 | 7.125 | 0.625 | 26.5 | 90 | 2250 | 44.9 | 187 | 12.6 |
| S 24 x 80 | 24 | 7.000 | 0.500 | 23.5 | 80 | 2100 | 42.2 | 175 | 12.1 |
carbon-steel-h-beam-s70c-csp make up the most common component of structural framing systems. They can be used to build bridges, warehouses and other large buildings, and can even be used in machinery or to frame truck beds. Beams can be positioned on their sides or at an angle and connect to columns via bolts, welds, and beam supports.
