Products Description
Q235 H profile steel is a Chinese steel alloy containing carbon, silicon, manganese and trace amounts of other elements. It has a relatively low tensile strength and is used in construction applications where strength requirements are not particularly high.
Q345 steel H-beam is a low-alloy steel used in the manufacture of bridges, buildings and other structures. Its yield strength is 345 MPa and its tensile strength is 470-660 MPa.
Q345 H channel steel is an alloy steel with a higher carbon content than Q235 H section beam. This results in Q345 H beam structure having higher tensile strength, making them ideal for applications requiring strength. Q345 structural steel H beam also has a lower melting point than other steels, making it suitable for welding and thermoforming applications.
Products Details
| Product Name | Q235 Q355 H Shaped Steel |
| Length |
as your requested |
| Standards | JIS, ASTM, GB, EN,etc. |
| Shape | H |
| Technique | Hot rolled, welded |
| Origin | China |
| MOQ | 3 tons |
What are the types of H-beam?
H column steel is mainly divided into ordinary I-beam light I-beam and wide flange I-beam according to the height ratio of the flange and the web is divided into wide wide narrow wide flange I-beam the first two production specifications for the 10 60, that is, the corresponding height of 10 centimeters 60 centimeters at the same height, the light I-beam narrow flange web thin weight light weight wide flange I-beam, also known as the metal H beam, and the cross-section characteristics of the two legs are parallel and the inner leg does not slope it belongs to the economic cross section Steel, is rolled in the four-roll universal rolling mill, so also known as universal I-beam. Ordinary light duty I-beam has formed a national standard.
Our size list
|
Specifications (mm) |
Theoretical weight (kg/m) |
Specifications (mm) |
Theoretical weight(kg/m) |
Specifications (mm) |
Theoretical weight (kg/m) |
|
100*50*5*7 |
9.54 |
244*175*7*11 |
44.1 |
440*300*11*18 |
124 |
|
100*100*6*8 |
17.2 |
250*250*9*14 |
72.4 |
446*199*8*12 |
66.7 |
|
125*125*6.5*9 |
23.8 |
294*200*8*12 |
57.3 |
450*200*9*14 |
76.5 |
|
148*100*6*9 |
21.4 |
298*149*5.5*8 |
32.6 |
482*300*11*15 |
115 |
|
150*75*5*7 |
14.3 |
300*150*6.5*9 |
37.3 |
488*300*11*18 |
129 |
|
150*150*7*10 |
31.9 |
300*300*10*15 |
94.5 |
496*199*9*14 |
79.5 |
|
175*90*5*8 |
18.2 |
346*174*6*9 |
41.8 |
500*200*10*16 |
89.6 |
|
175*175*7.5*11 |
40.3 |
350*175*7*11 |
50 |
582*300*12*17 |
137 |
|
194*150*6*9 |
31.2 |
340*250*9*14 |
79.7 |
588*300*12*20 |
151 |
|
198*99*4.5*7 |
18.5 |
350*350*12*19 |
137 |
596*199*10*15 |
95.1 |
|
200*100*5.5*8 |
21.7 |
390*300*10*16 |
107 |
600*200*11*17 |
106 |
|
200*200*8*12 |
50.5 |
396*199*7*11 |
56.7 |
700*300*13*24 |
185 |
|
248*124*5*8 |
25.8 |
400*200*8*13 |
66 |
800*300*14*26 |
210 |
|
250*125*6*9 |
29.7 |
400*400*13*21 |
172 |
900*300*16*28 |
243 |
The above is part of the size information!
For more information please contact us!

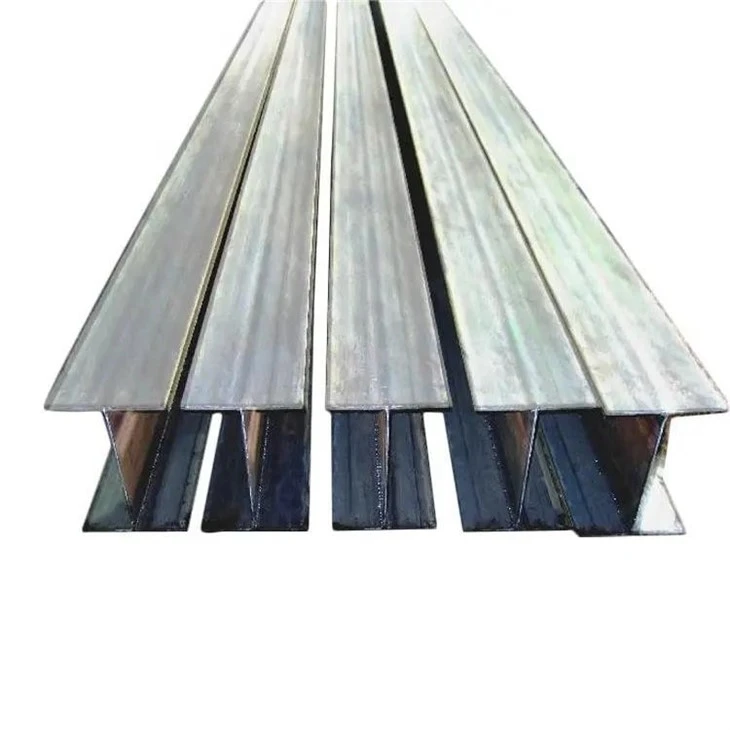

H column steel image
Group photo of the GNEE Group team
GNEE Group customer visit
We have sufficient inventory, we have Q235 Q355 H Shaped Steel and angle iron, channel steel and other products in stock, if you have any needs, please contact us.
