S355jr S355j2 H profile steel
【GNEE Group Office Environment】
Products Description
S335JR H-shaped steel has good weldability and can be welded using various welding methods, whether without heating or preheating, and then high temperature treatment.
S355J2 H profile steel has good mechanical properties, which determines its widespread use in the manufacture of metal structures and products for construction and machinery manufacturing. S355J2 H-beams are commonly used in industrial and civil engineering, as well as in the construction of oil and gas platforms, other offshore structures, transmission towers and other metal structures.
Products Details
| Product Name | S355jr S355j2 H profile steel |
| Length |
as your requested |
| Standards | JIS, ASTM, GB, EN,etc. |
| Packing | in bundle,packed with steel belts tightly |
| Surface | Painted;Galvanized;Weld |
| Origin | China |
| Price Term | FOB, CIF, EXW,DDP, etc. |
| Delivery Time | 3-30 days,according to your quantity |
S355JR H Beam Steel Chemical Composition
| C | Si | Mn | P | S | N | Cu | CEV |
| max 0.24 | max 0.55 | max 1.6 | max 0.04 | max 0.04 | max 0.012 | max 0.55 | max 0.47 |
S355J2 Structural Steel Beams Chemical Composition
| C | Si | Mn | P | S | Cu | CEV |
| max 0.22 | max 0.55 | max 1.6 | max 0.03 | max 0.03 | max 0.55 | max 0.47 |
S355JR H Beam Iron Mechanical Property
| Nominal thickness (mm): | to 3 | 3 - 100 | 100 - 150 | 150 - 250 |
| Rm - Tensile strength (MPa) Flat and long products | 510-680 | 470-630 | 450-600 | 450-600 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 100 | 100 - 150 | 150 - 200 | 200 - 250 |
| ReH - Minimum yield strength (MPa) Flat and long products | 355 | 345 | 335 | 325 | 315 | 295 | 285 | 275 |
| KV - Impact energy (J) longitud., | -20° 27 |
0° 27 |
+20° 27 |
| Nominal thickness (mm): | to 1 | 1 - 1.5 | 1.5 - 2 | 2 - 2.5 | 2.5 - 3 |
| A - Min. elongation Lo = 80 mm (%) parallel, | 14 | 15 | 16 | 17 | 18 |
| Nominal thickness (mm): | 3 - 40 | 40 - 63 | 63 - 100 | 100 - 150 | 150 - 250 |
| A - Min. elongation Lo = 5,65 √ So (%) parallel, | 22 | 21 | 20 | 18 | 17 |
S355J2 H Channel Steel Mechanical Property
| Nominal thickness (mm): | to 3 | 3 - 100 | 100 - 150 | 150 - 250 | 250 - 400 |
| Rm - Tensile strength (MPa) Flat and long products | 510-680 | 470-630 | 450-600 | 450-600 | 450-600 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 100 | 100 - 150 | 150 - 200 | 200 - 250 |
| ReH - Minimum yield strength (MPa) Flat and long products | 355 | 345 | 335 | 325 | 315 | 295 | 285 | 275 |
| KV - Impact energy (J) longitud., | -20° 27 |
0° 27 |
+20° 27 |
| Nominal thickness (mm): | to 1 | 1 - 1.5 | 1.5 - 2 | 2 - 2.5 | 2.5 - 3 |
| A - Min. elongation Lo = 80 mm (%) parallel, | 14 | 15 | 16 | 17 | 18 |
| Nominal thickness (mm): | 3 - 40 | 40 - 63 | 63 - 100 | 100 - 150 | 150 - 250 |
| A - Min. elongation Lo = 5,65 √ So (%) parallel, | 22 | 21 | 20 | 18 | 17 |
Equivalent Grades Of Steel S355JR
| EU EN |
USA - |
Germany DIN,WNr |
Japan JIS |
France AFNOR |
England BS |
Canada HG |
European old EN |
Italy UNI |
Belgium NBN |
Spain UNE |
China GB |
||||||||||||||||||||
| S355JR |
|
|
|
|
|
|
|
|
|
|
|
Equivalent Grades Of Steel S355J2
| EU EN |
USA - |
Germany DIN,WNr |
Japan JIS |
France AFNOR |
England BS |
European old EN |
Italy UNI |
China GB |
Sweden SS |
Czechia CSN |
|||||||||||||
| S355J2 |
|
|
|
|
|
|
|
|
|
|

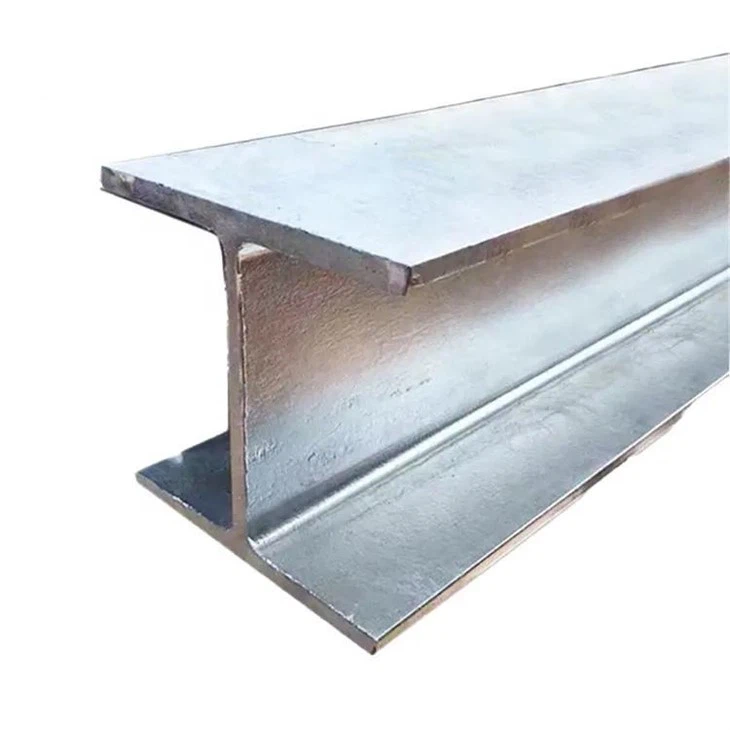

Metal H Beam Image
Customer Visit:
Customer Visit:
We can provide professional services, we have H beam and channel steel and other products in stock, if you have any needs, please contact us.
