SMA400AW SMA400BW corten steel
SMA400AW SMA400BW weathering steel sheet Product Introduction
The SMA400AW atmospheric steel and SMA400BW corten metal sheet offered by GNEE are both corrosion resistant steel sheets, SMA570P corten structural steel Execution standard: JIS G3114.
The SMA400AW weathering metal and SMA400BW steel weathering we offer are manufactured in strict accordance with the standards and have passed the quality certification, we can provide quality certificates and accept the third party testing. Besides, the SMA400AW weathering plate and SMA400BW steel weathering we supplied are mainly used for steel structures used in railway, vehicles, bridges, pylons, photovoltaic, high-speed engineering and other steel structures that are exposed to the atmosphere for a long time.
| Products | Weather Resistant/Corten Steel Plate |
| Standard grade | ASTM: Corten A; Corten B; A588Gr.A/Gr.B/Gr.C/ Gr.K; A242; A606 Type 4; A709 Gr 50W; |
| EN10025: S235J0W; S235J2W; S355J0W; S355J2W; S355K2W; S355J0WP; S355J2WP; S355J2G1W; S355J2G2W; S355K2G1W, S355K2G2W; | |
| JIS G3114: SMA400AW; SMA400BW; SMA400CW; SMA490AW; SMA490BW; SMA490CW; SMA570W; SMA570P; | |
| JIS G3125: SPA-H; SPA-C; | |
| GB/T 4171: Q235NH; Q265GNH; Q310GNH; Q295NH; Q295GNH; Q355NH;Q355GNH;Q415NH; Q460NH; 1500NH; Q550NH; | |
| TB/T 1979: 09CuPCrNi-A; 09CuCrNi-B; 05CuPCrNi; | |
| Q/BQB 340: B460NQR; B490NQR; B480GNQR; B600GNQR; | |
| Thickness | Cold Rolled 0.5-2mm Hot Rolled 2-300mm (2-100mm usually used) |
| Width | 1000-3000mm (1000-2200mm usually used) |
| Length | 1000-12000mm or as your request |
| Surface | Clean, finishing,blasting and painting according to customer requirement |
| Process | Hot-rolled, Controlled rolling, Normalizing, Annealing, Tempering, Quenching, N+T, Q+T,and other delivery states are available as required |
| Certificate | API,ISO,SGS,BV,CE etc |
| Quality | MTC will be provided with goods, third part inspection is acceptable, for example BV,SGS. |
| Package | Standard export seaworthy package,suit for all kinds of transport,or as required. |
SMA400AW SMA400BW atmospheric corrosion resistant steel Product Details
SMA400AW SMA400BW Corten Material Chemical Composition:
| C MAX | Si | Mn MAX | P MAX | S MAX | Cu | Cr | Ni |
| 0.18 | 0.15-0.65 | 1.25 | 0.035 | 0.035 | 0.30-0.50 | 0.45-0.75 | 0.05-0.30 |
SMA400AW SMA400BW Corten Steel Sheet Metal Mechanical Properties:
| Yield Strength(MPa) | Tensile Strength(MPa) | % Elongation in 2 in.(50mm) min | Impacting Test Temperature(°C) |
| 245 | 400-540 | 22 | 0 |

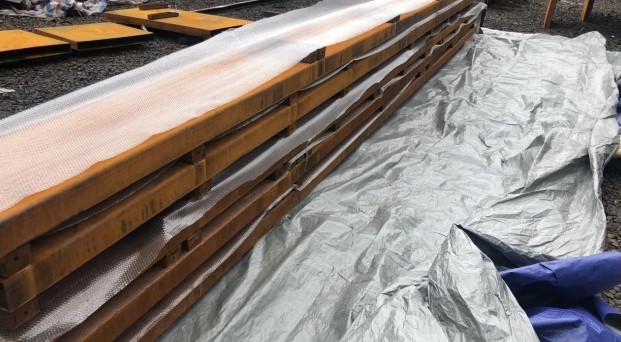

SMA400AW SMA400BW corten sheet Product Image
SMA400AW SMA400BW Weather Resistant Steel Plate Product Transportation
GNEE Group Team Photo
GNEE in line with "customer first, credit first, quality first, steady development" business purposes, "service to ensure survival, reputation to create success" business philosophy, "quality-oriented, focus on the future" business policy, the company's entire staff will be full of enthusiasm, quality service and the majority of new and old customers and friends to join hands in creating brilliant.
GNEE Group Exhibition Pictures
GNEE Group customers visit
If you have more needs and questions about SMA400AW SMA400BW corten steel, we are happy to advise you!
