A588Gr.A Steel Plate

A588Gr.A Steel Plate

The ASTM A588 specification is the Standard Specification for High-Strength Low-Alloy Structural Steel , up to 50 ksi Minimum Yield Point, with Atmospheric Corrosion Resistance for applications where strength and durability are needed. The required ASTM G101 Corrosion Resistance Index must be ≥ 6.0.

A588Gr.A Steel plate



A588Gr.A Steel plate Product Introduction



ASTM A588 GR.A PLATES are plates of A grade which are made from the ASTM material. We make this product available in a number of shapes, sizes, grades, and specifications. This product is the steel plate which is made of the specification known as ASTM A588. They are known for their high strength as well as lower composition of alloy throughout its structure. This is the core reason of them being used so widely.

They have a large number of properties such as elongation properties and also it has a very high yield strength as well as tensile strength. It also provides a high resistance against the stress related corrosion and is excellent in preventing the corrosion cracking and the pitting. It has an excellent corrosion resistance and it can prevent a number of corrosion related problems such as oxidation, toxic gases, reduction, and reactive chemicals as well. It is equipped with the capability of preventing these efficiently.

It is also excellent in terms of resisting the enormous temperatures and large amount of heat environments as well. They are excellent when it comes to the weldability as well as machine ability. They are excellent for joining as well as bending purposes. They are very tough and have a highly rigid structure. They are very much durable and can handle even the harshest conditions. They are highly ductile and can be easily drawn in the form of wires to extend its capabilities even further. It is designed in a number of dimensions as well as varying thickness. It is ideal for operations that take place in the most hostile environments. They are also usable in bare conditions as well that makes it an excellent product in the industry.

It can be used in a number of varying weather conditions as well. They are available in different forms of weathering steel plates such as hot rolled, cold rolled, normalized, and even tempering as well. We make these products available in all these different forms. We also conduct various tests on our products such as destructive and non-destructive tests like firmness test, impact analysis, etc.



A588Gr.A Steel plate Product Details

ASTM A588 GRADE A CORTEN STEEL PLATES CHEMICAL COMPOSITION

Grade C % Si % Mn % P % S % Cr % V % Ni % Cu %
A588 Gr A 0.19 0.30-0.65 0.80-1.25 0.04 0.05 0.40-0.65 0.02-0.10 0.40 0.25-0.5
A588 Gr B ≤0.20 0.15-0.50 0.75-1.35 0.040 0.050 0.40-0.70 0.01-0.10 ≤0.50 ≤0.50

ASTM A588 GR A CORTEN STEEL PLATES MECHANICAL PROPERTIES

Grade Thickness Yield Strength
ReH[N/mm2]transv.min
TensileStrength
Rm[N/mm2]transv
ASTM A588 0mm-100mm 340 MPa 480 MPa
102mm-127mm 320 MPa 460 MPa
127mm-203mm 290 MPa 430 MPa

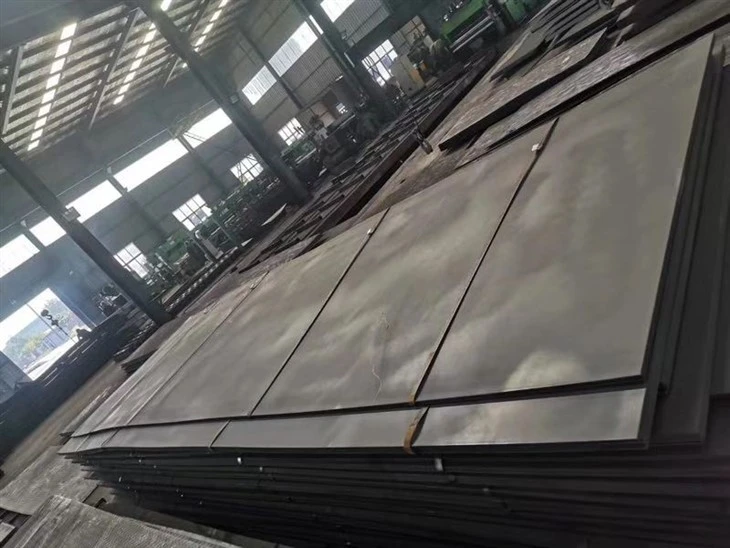

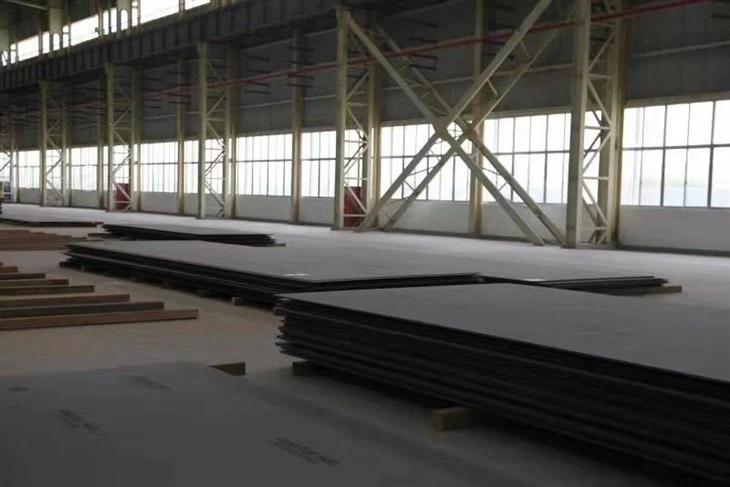

 Steel Plates Product Image



Boiler plates



GNEE Group Team Photo



GNEE is a vessel plate supplier with 16 years of production experience. We have strong market control capabilities. The company adjusts inventory in a timely manner according to market demand and has sufficient supply to ensure that it meets the needs of market customers. Our sales network spans the world and has been exported to more than 200 countries including the United States, Mexico, Canada, Spain, Singapore, Thailand, and India.



boiler quality steel



GNEE Group Exhibition Pictures



PVQ Steel Plate



GNEE Group customers visit



Heat-Treated PVQ Steel Plate



If you have more needs and questions about A588Gr.A Steel plate, please contact us!
