Q345B Steel Angle Channel
Q345B angle steel is a carbon structural steel used in construction. It is a simple cross-section steel material. It is mainly used for metal components and factory building frames. It requires good weldability, plastic deformation performance and certain mechanical strength during use.
GNEE Group is a professional manufacturer of Q345B Angle Steel, which can produce equal and unequal angles in various specifications. We can provide customized service according to the length, thickness and other requirements you provide.
q345B angle steel beam chemical composition
| C | Si | Mn | P | S | V | Nb | Ti |
| 0.20 | 0.55 | 1.00-1.60 | 0.040 | 0.040 | 0.02-0.15 | 0.015-0.060 | 0.02-0.20 |
q345B steel angle channel mechanical property
| Thickness (mm) | ||||
| Q345B | ≤ 16 | > 16 ≤ 35 | > 35 ≤ 50 | >50 |
| Yield strength (≥Mpa) | 345 | 325 | 295 | 275 |
| Tensile strength (Mpa) | 470-630 | |||
Size Chart of Angle Steel
| Size(mm) | Weight (kg/m) |
Size(mm) | Weight (kg/m) | Size(mm) | Weight (kg/m) | Size(mm) | Weight (kg/m) |
| 25*25*3 | 1.124 | 90*90*10 | 13.476 | 200*200*20 | 60.056 | 100*63*10 | 12.142 |
| 25*25*4 | 1.459 | 90*90*12 | 15.94 | 25*16*3 | 0.912 | 100*80*6 | 8.35 |
| 30*30*3 | 1.373 | 100*100*6 | 9.366 | 32*20*3 | 1.171 | 100*80*7 | 9.656 |
| 30*30*4 | 1.786 | 100*100*7 | 10.83 | 32*20*4 | 1.522 | 100*80*8 | 10.946 |
| 40*40*3 | 1.852 | 100*100*8 | 12.276 | 40*25*3 | 1.484 | 100*80*10 | 13.476 |
| 40*40*4 | 2.422 | 100*100*10 | 15.12 | 40*25*4 | 1.936 | 110*70*6 | 8.35 |
| 40*40*5 | 2.976 | 100*100*12 | 20.611 | 45*28*3 | 1.687 | 110*70*7 | 9.656 |
| 50*50*4 | 3.059 | 100*100*16 | 23.257 | 45*28*4 | 2.203 | 110*70*8 | 10.946 |
| 50*50*5 | 3.77 | 110*110*7 | 11.928 | 50*32*3 | 1.908 | 110*70*10 | 13.476 |
| 50*50*6 | 4.465 | 110*110*8 | 13.532 | 50*32*4 | 2.494 | 125*80*7 | 11.066 |
| 60*60*5 | 4.52 | 110*110*10 | 16.69 | 56*36*3 | 2.153 | 125*80*8 | 12.551 |
| 60*60*6 | 5.42 | 110*110*12 | 19.782 | 56*36*4 | 2.818 | 125*80*10 | 15.474 |
| 63*63*5 | 4.822 | 110*110*14 | 22.809 | 56*36*5 | 3.466 | 125*80*12 | 18.33 |
| 63*63*6 | 5.721 | 125*125*8 | 15.504 | 63*40*4 | 3.185 | 140*90*8 | 14.1 |
| 63*63*8 | 7.469 | 125*125*10 | 19.133 | 63*40*5 | 3.92 | 140*90*10 | 17.475 |
| 63*63*10 | 9.151 | 125*125*12 | 22.696 | 63*40*6 | 4.638 | 140*90*12 | 20.724 |
| 70*70*5 | 5.397 | 125*125*14 | 26.193 | 70*45*5 | 4.403 | 140*90*14 | 23.908 |
| 70*70*6 | 6.406 | 140*140*10 | 21.488 | 70*45*6 | 5.218 | 160*100*10 | 19.872 |
| 70*70*7 | 7.398 | 140*140*12 | 25.522 | 70*45*7 | 6.011 | 160*100*14 | 27.274 |
| 70*70*8 | 8.373 | 140*140*14 | 29.49 | 75*50*5 | 4.808 | 160*100*16 | 30.853 |
| 75*75*5 | 5.818 | 140*140*16 | 35.393 | 70*50*6 | 5.699 | 180*110*10 | 22.273 |
| 75*75*6 | 6.905 | 160*160*10 | 24.729 | 70*50*8 | 7.431 | 180*110*12 | 26.464 |
| 75*75*7 | 7.976 | 160*160*12 | 29.391 | 70*50*10 | 9.098 | 180*110*14 | 30.589 |
| 75*75*8 | 9.03 | 160*160*14 | 33.987 | 80*50*5 | 15.005 | 200*125*16 | 34.649 |
| 75*75*10 | 11.089 | 160*160*16 | 38.518 | 80*50*6 | 5.935 | 200*125*12 | 29.761 |
| 80*80*6 | 7.376 | 180*180*12 | 33.159 | 80*50*7 | 6.848 | 200*125*14 | 34.436 |
| 80*80*7 | 8.525 | 180*180*14 | 38.383 | 80*50*8 | 7.745 | 200*125*16 | 39.045 |
| 80*80*8 | 9.658 | 180*180*16 | 43.542 | 90*56*5 | 5.661 | 200*125*18 | 43.588 |
| 80*80*10 | 11.874 | 180*180*18 | 48.634 | 90*56*6 | 6.717 | ||
| 90*90*6 | 8.35 | 200*200*14 | 42.894 | 90*56*8 | 8.779 | ||
| 90*90*7 | 9.656 | 200*200*16 | 48.68 | 100*63*7 | 8.722 | ||
| 90*90*8 | 10.946 | 200*200*18 | 54.401 | 100*63*8 | 9.878 |

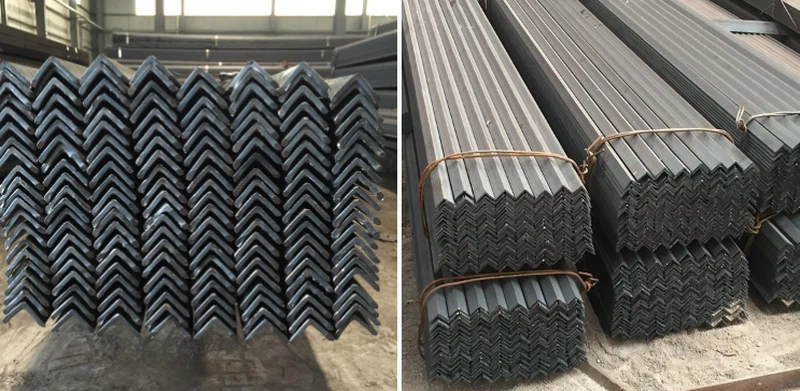

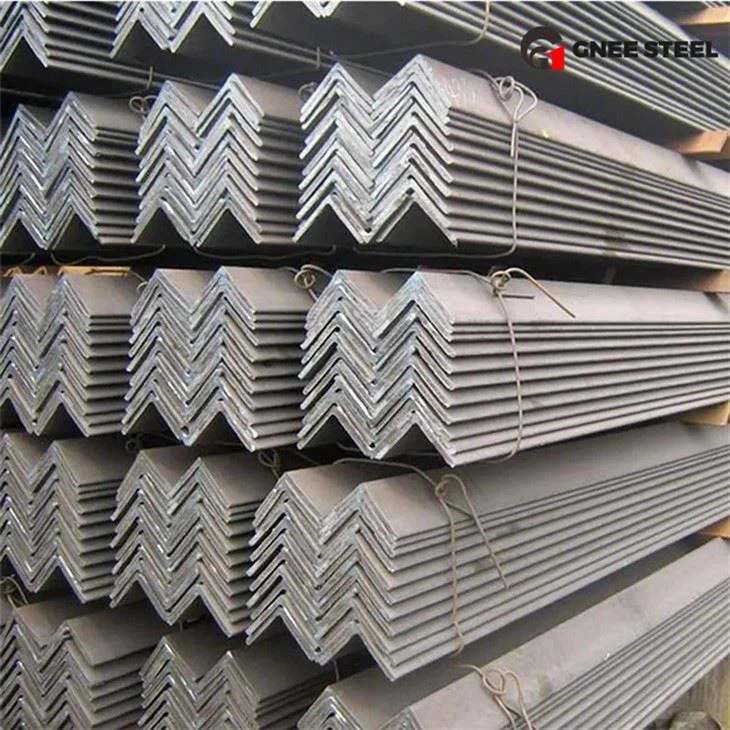

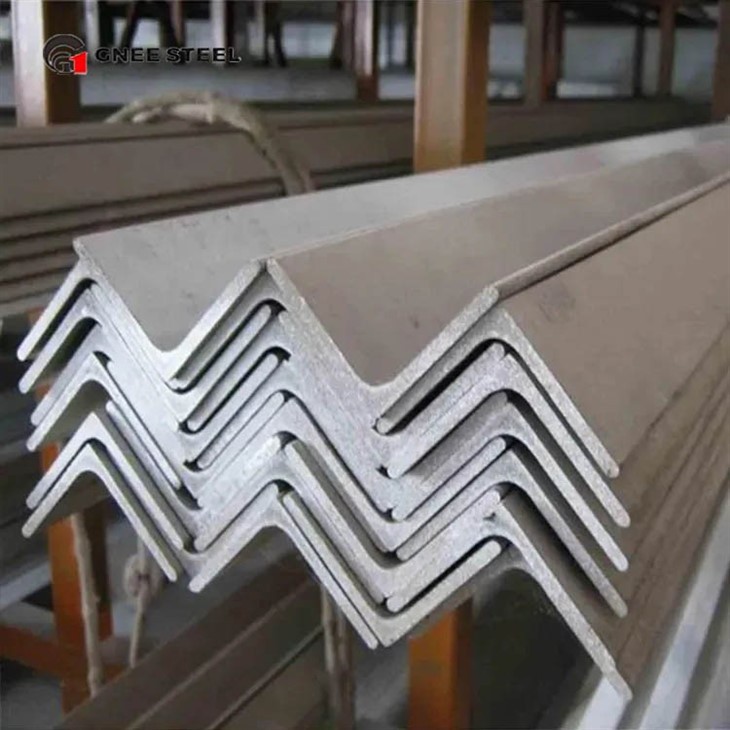

metal angle bars Products image
GNEE group team photo
GNEE group customer visit
Products Description
We guarantee the quality and quantity of Q345B Steel Angle Channel. If you would like more information, please contact us!
