Name: China NM400 High Strength Abrasion Resistant Steel Plates Manufacturers Suppliers Factory - Gnee Steel
Brand: GNEE
SKU: 245740318

NM400 High Strength Abrasion Resistant Steel Plates

NM400 is one kind of Chinese wear/abrasion resistant steel plates, which is well received in middle east and Africa. An NM400 wear-resistant steel was hot rolled and then the plates were heat-treated by direct quenching and tempering and reheat quenching and tempering techniques, respectively.

NM400 Abrasion Resistant Steel plate

steel Product Introduction

The NM400 Wear-Resistant Plate provides unrivaled performance, cost savings, and extended equipment life.

NM400 is wear-resistant steel with a hardness of 400 HBW, as well as high strength and outstanding impact toughness. The enhanced resistance of NM400 enables considerable savings in all heavy applications where a longer lifespan, reduced weights, energy efficiency, and good weldability are required. All NM400 plates are fully killed and fine-grain treated - trimmed on all four edges, shot blasted, and UT tested in accordance with EN10160 S1E1

Steel plate Product Details

Chemical Composition Of NM 400 Plates

NM 400 Chemical Compositiom
Plate	C	Si	Mn	P	S	Cr	Ni	Mo	B	CEV	CET
thickness mm	max %	max %	max %	max %	max %	max %	max %	max %	max %	typv	typv
3-(8)	0.15	0.7	1.6	0.025	0.01	0.3	0.25	0.25	0.004	0.33	0.23
8-20	0.15	0.7	1.6	0.025	0.01	0.5	0.25	0.25	0.004	0.37	0.27
(20)-32	0.18	0.7	1.6	0.025	0.01	1	0.25	0.25	0.004	0.48	0.29
(32)-45	0.22	0.7	1.6	0.025	0.01	1.4	0.5	0.6	0.004	0.57	0.31
(45)-51	0.22	0.7	1.6	0.025	0.01	1.4	0.5	0.6	0.004	0.57	0.38
(51)-80	0.27	0.7	1.6	0.025	0.01	1.4	1	0.6	0.004	0.65	0.41
(80)-130	0.32	0.7	1.6	0.025	0.01	1.4	1.5	0.6	0.004	0.73	0.48

Mechanical Properties for NM 400 High Tensile Plate

Mechanical properties of NM 400
Grade	Mechanical Property			Charpy V Impact Test
NM 400	Yield	Tensile	Elongation	Degree	longitudinal
	Min Mpa	Mpa	Min %	-40	J
	1000	1250	10	-40	45

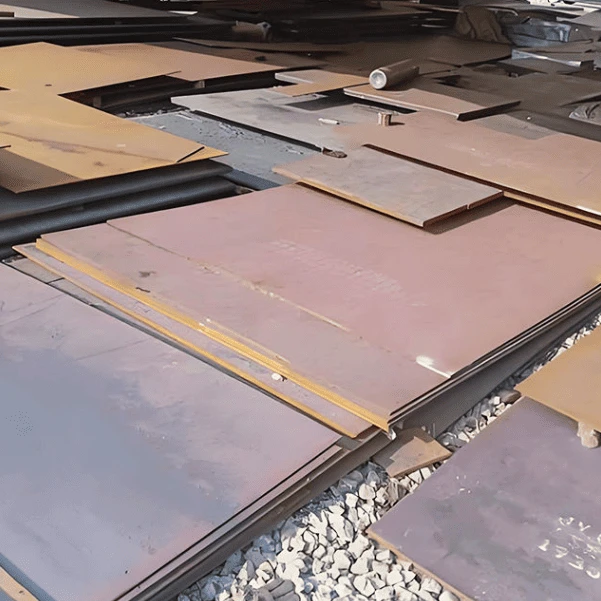

steel plate Product Image

b9d5b3ca5d1ec7276b476c59a53cbed

GNEE Group Team Photo

Committed to strict quality control and dedicated customer service, we have an experienced production staff ready to meet your needs and ensure customer satisfaction. We guarantee you a pleasant stay in China.

wear plate steel

GNEE Group Exhibition Pictures

wear resistant plate

GNEE Group customers visit

abrasion resistant steel plate

If you have more needs and questions about steel, we are happy to advise you!
