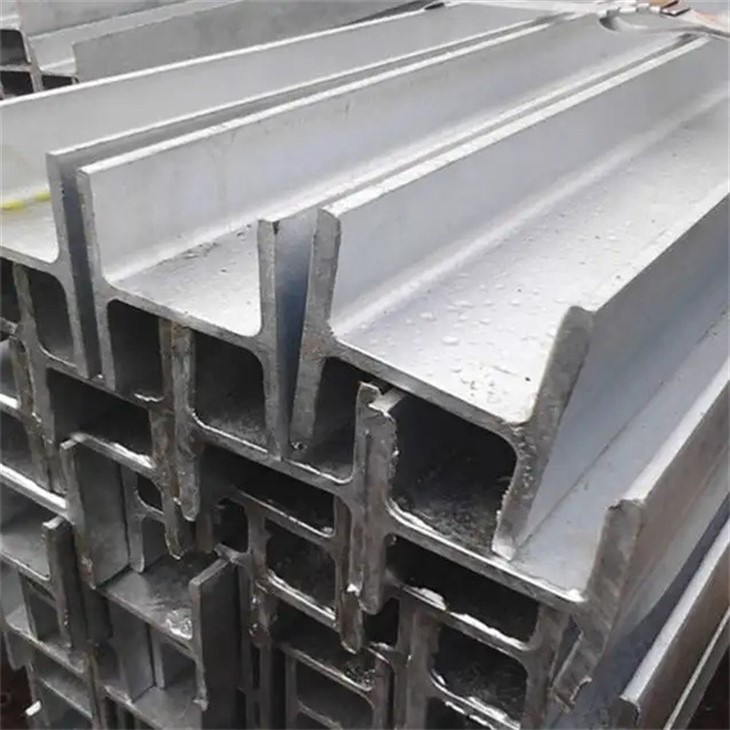

A992 A36 H Shaped Steel

ASTM A992 steel is a structural steel alloy often used in the US for steel wide-flange and I beams. Like other carbon steels, the density of ASTM A992 steel is approximately 7850 kg/m3 (0.2836 lb/in3). ASTM A992 steel has the following minimum mechanical properties, according to ASTM specification A992/A992M. Tensile yield strength, 345 MPa (50 ksi); tensile ultimate strength, 450 MPa (65 ksi); strain to rupture (sometimes called elongation) in a 200-mm-long test specimen, 18%; strain to rupture in a 50-mm-long test specimen, 21%. A36, also known as ASTM-A36, is a steel with a yield limit of 36KSI (≈250Mpa) under the American standard ASTM

Products Description

ASTM A992 steel contains small content of vanadium or columbium, copper, nickel, chrome and molybdenum, all of which greatly improve A992 comprehensive property. On one hand, it is similar to A572-50 in low ratio of weight-to-strength. on the other hand, the alloy elements optimize the inside structure of the steel and improves its properties.

ASTM A992 Steel I beam is the prime alternative for bridge construction and building frames for its yield strength reaches 65 ksi.

Product description:

Item: ASTM A992 steel beam.

Technology: hot rolled.

Surface treatment: black, galvanized or primed.

Sizes: IPN & IPE european standard.

Web width: 42 - 215 mm.

Depth: 80 - 600 mm.

Web thickness: 3.8 - 21.6 mm.

Note: special steel beam sizes are customized on order.

Physical Properties	Metric	English	Comments
Density	7.80 g/cc	0.282 lb/in³	Typical of ASTM Steel

Mechanical Properties	Metric	English	Comments
Tensile Strength, Ultimate	400 - 550 MPa	58000 - 79800 psi
Tensile Strength, Yield	250 MPa	36300 psi
Elongation at Break	20 %	20 %	in 200 mm
	23 %	23 %	In 50 mm.
Modulus of Elasticity	200 GPa	29000 ksi
Bulk Modulus	160 GPa	23200 ksi	Typical for steel
Poissons Ratio	0.26	0.26
Shear Modulus	79.3 GPa	11500 ksi

Product Details

Product Name	A992 A36 h shaped steel
Length	As your required
Standard	ASTM/ GB/ JIS/ EN ect.
Delivery Time	According to your quantity
Payment Terms	FOB/ CIF/ EXW/ DDP
Origin	China
Sample	Yes
Tolerance	±0.3
Packing	Packed with steel belts tightly, in bundle
MOQ	1 Ton

customer visit

Our factory has complete production facilities, and provides laser cutting , bending, welding, painting, assembly and other processing services.

We have own large-scale indoor warehouse with perennial spot stocks totally above 5000 tons mainly include 2000 tons galvanized

steel series and 2500 tons carbon steel series

All the products have to pass the inspections such as tension test, hardness test, spectrophotometer test, salt spray test and PH

test before leaving the factory .

Our Service

1.Quality Assurance ''Knowing our supplier''

2.On time delivery ''No waiting around''

3.One stop shopping ''Everything you need in one place''

4.Cost saving options ''Getting you need in one place ''

5.Small quantity acceptable ''Every ton is valuable to us''
