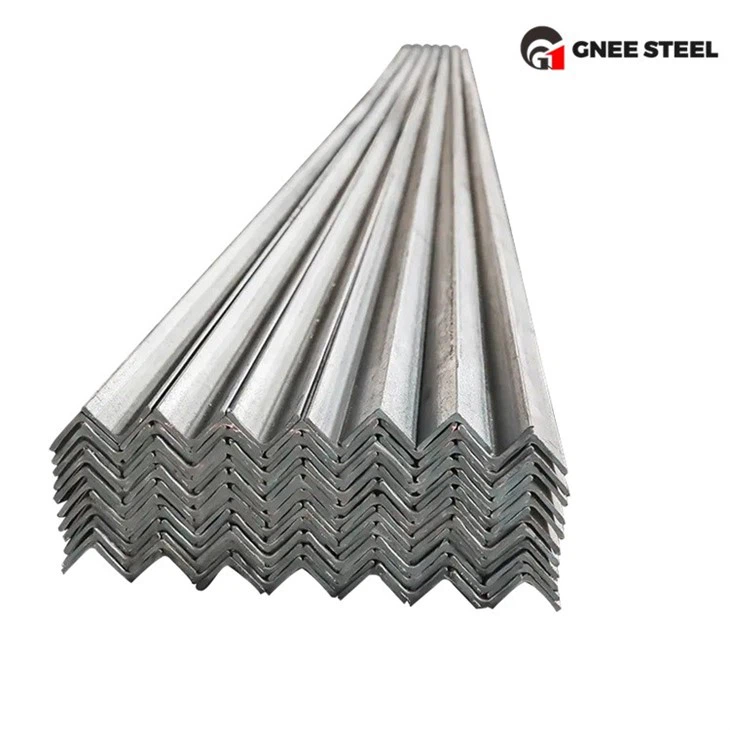

A36 A572GR50 Steel Angle

A36 is a low carbon steel. Low carbon steels are classified by having less than 0.3% carbon by weight. This allows A36 steel to be easily machined, welded, and formed, making it extremely useful as a general-purpose steel. ASTM A572 GR 50 is a high strength low alloy steel. Grade 50 is difficult to form since it contains more alloying elements than plain steel but offers more strength per unit of weight. Owing to its high strength ASTM A572 Grade 50 Plates requires less material to satisfy strength requirements than plain carbon steel.

Products Description

Physical Properties A36

Density	0.282 lb/in3
Ultimate Tensile Strength	58 ksi
Yield Tensile Strength	47.7 ksi
Shear Modulus	11,500 ksi
Shear Strength	44 ksi
Hardness Rockwell \| Brinell	B77 \| 140
Elongation at Break Percentage	22%
Reduction of Area	50%
Modulus of Elasticity	29,000 ksi
Poisson's Ratio	0.26
Machinability Percentage	72%
Melting Point	2,590-2,670 °F
Specific Heat	1.1 x 10^-1 BTU/lb-°F
Thermal Conductivity	348 BTU-in/hr-ft^2-°F
Electrical Conductivity	12% IACS

GRADE	YIELD POINT	TENSILE STRENGTH
A36	36 KSI	58-80 KSI
A572 GRADE 42	42 KSI	60 KSI
A572 GRADE 50	50 KSI	65 KSI
A572 GRADE 55	55 KSI	70 KSI
A572 GRADE 60	60 KSI	75 KSI
A572 GRADE 65	65 KSI	80 KSI

Uses of Angle Bar

Angle Bar has many applications in various sectors. Please see below some of the most common uses of Angle Bar.

Bridges

Angle bars are used to provide support and stability in bridge structures. They can be put vertically to form a protective barrier on the bridge's sides, ensuring pedestrian and vehicle safety.

Fabrication

Angle bars are used in the fabrication and construction sectors to create a variety of components and structures. They can be cut, welded, or bolted together to produce brackets and supports for a variety of applications.

Framing and reinforcement

Angle bars are used to make frames for doors, windows, and partitions.

276

Product Details

Product Name	A36 A572GR50 steel angle
Length	As your required
Standard	ASTM/ GB/ JIS/ EN ect.
Delivery Time	According to your quantity
Payment Terms	FOB/ CIF/ EXW/ DDP
Origin	China
Sample	Yes
Tolerance	±0.3
Packing	Packed with steel belts tightly, in bundle

customer visit

191

Our factory has complete production facilities, and provides laser cutting , bending, welding, painting, assembly and other processing services.

We have own large-scale indoor warehouse with perennial spot stocks totally above 5000 tons mainly include 2000 tons galvanized

steel series and 2500 tons carbon steel series

All the products have to pass the inspections such as tension test, hardness test, spectrophotometer test, salt spray test and PH

test before leaving the factory

Our Service

1.Quality Assurance ''Knowing our supplier''

2.On time delivery ''No waiting around''

3.One stop shopping ''Everything you need in one place''

4.Cost saving options ''Getting you need in one place ''

5.Small quantity acceptable ''Every ton is valuable to us''
